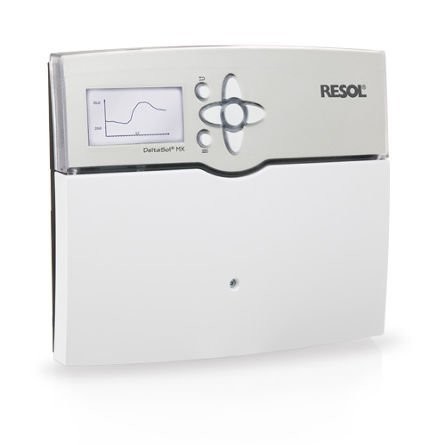

RESOL® DeltaSol® MX Controller
Product Details
Brand: RESOL®
The DeltaSol® MX is one of the most versatile system controller for complex solar and heating systems. It is ideal for controlling a combination of solar and non-solar parts of the system. Easy combination and parameterisation of pre-programmed functions for several millions of hydraulic variants.
Features and Attributes:
- 14 relay outputs and 12 inputs for Pt1000, Pt500 or KTY temperature sensors
- Up to 5 extension modules via RESOL VBus® (45 sensors and 39 relays in total)
- Inputs for analogue and digital Grundfos Direct Sensors™
- Integrated control of up to 4 high-efficiency pumps via PWM outputs
- Data logging, storing, easy transfer of controller adjustments prepared and firmware updates via SD card
- Cooling over the heating circuit with condensation detection by means of a dew point switch
- Simplified timer, 0-10 V boiler control and DHW preheating
- Remote access to the heating circuits with room control unit(s) or the VBus®Touch HC App
- Extended optional functions, e.g. solid fuel boiler function with mixer and target temperature control
