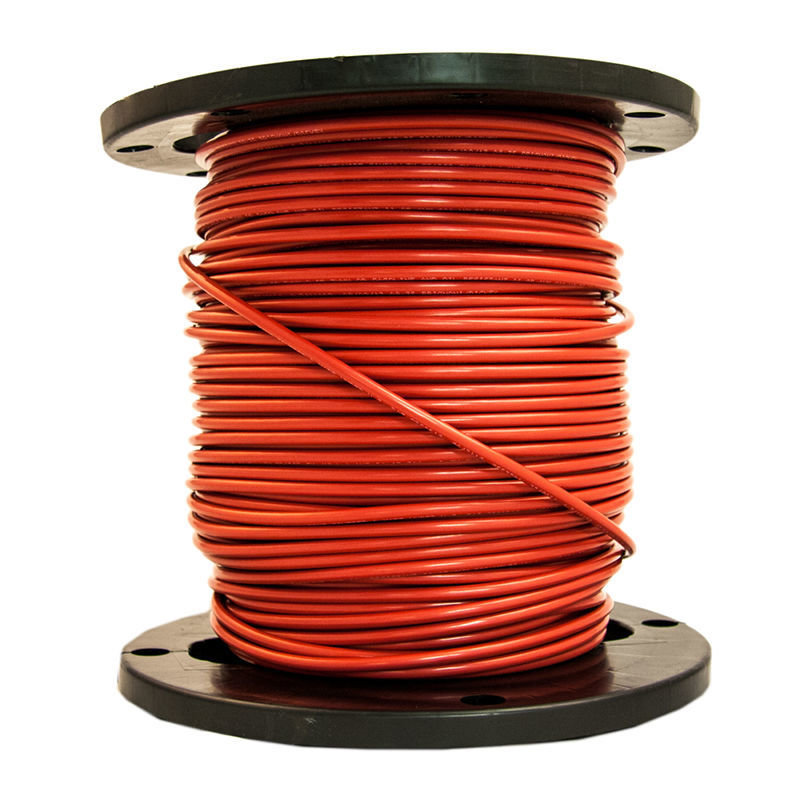

PV Wire (Red) 10AWG (per ft.)

XLPE, multi-stranded wire with a bright red jacket. The wire is 2000 Volt rated “RPVU90” stamped, CSA approved for Canada.

(Example SKUs: 1' = RED10PV-001, 10' = RED10PV-010, 100' = RED10PV-100)

Features and Attributes:

• Rated 90°C wet and dry
• Rated for direct burial
• Stranded copper, flexible, 19 strands
• Cross-linked polyethylene (XLPE) insulation
• Deformation-resistant at high temperatures
• Excellent moisture resistance, exceeds UL 44
• Stable electrical properties over a broad temperature range
• Excellent resistance to crush and compression cuts
• Resistant to most oils and chemicals
• UV/sunlight resistant
• Meets cold bend and cold impact tests at -40°C
