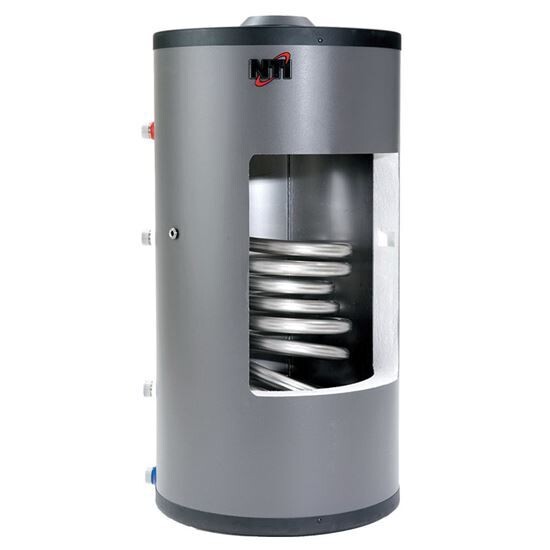

NY Thermal Trin & Stor S80 444 Stainless Steel Indirect Water Heater, 79 gal, 268000 btu/hr Output, 150 psi, 15 gpm

5 week lead time on this product
Features

• Innovative, flexible, comprehensive
• Coil is constructed out of type 444 stainless steel
• Tanks are completely pickled, rinsed and passivated inside and outside to remove all surface contaminations and restore the chromium oxide layer of the stainless steel surface
• Fittings are constructed out of type 316L stainless steel
• Insulated with CFC free 2 in. thick expanded polystyrene (EPS) foam
• Outer shell is constructed out of durable grey plastic
• Stainless steel well for insertion of tank sensor or aquastat
• Tank sensor
• Life-long operation
• Combine with a solar system5 week lead time on this product

• Height

  70-1/4 in.
• Material

  444 Stainless Steel
• BTU

  268000 btu/hr Output
• Capacity

  79 gal
• Continuous Draw

  314 gph at 140F, 495 gph at 115F
• Diameter

  23-7/8 in.
• First Hour Delivery

  378 gph at 140F, 559 gph at 115F
• Maximum Temperature

  190F Tank, 210F Boiler
• Pressure - Maximum

  150 psi
• Supply Pipe Connection Size

  1 in. MNPT Boiler, Cold and Hot Water Inlet and Outlet, 3/4 in. FNPT Relief Valve
