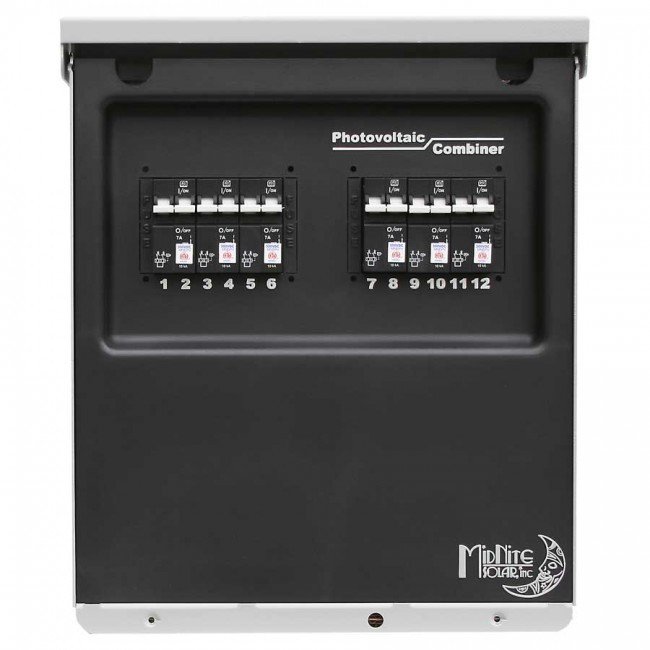

MidNite 12-Circuit Array Combiner Box

MidNite Solar offers photovoltaic (PV) combiner boxes ranging from their MNPV3 to their MNPV16. This range accommodates PV systems from a two-string off-grid cabin up to a 16-string 100 kW commercial grid-tie inverter.

Features and Attributes:

• Grey aluminum rainproof enclosure with dead-front
• Pole or wall mountable inside or outside
• Knockouts for lightning arrestors
• ETL listed to UL1741 for use in the US and Canada
• Designed for use with 150VDC charge controllers
• 5-year warranty

This 12-string combiner will accept twelve 150VDC (MNEPV) breakers or ten 600/1000VDC fuse holders (ordered separately). It also fits eight MNTS fuse holders for 600VDC string inverters.
