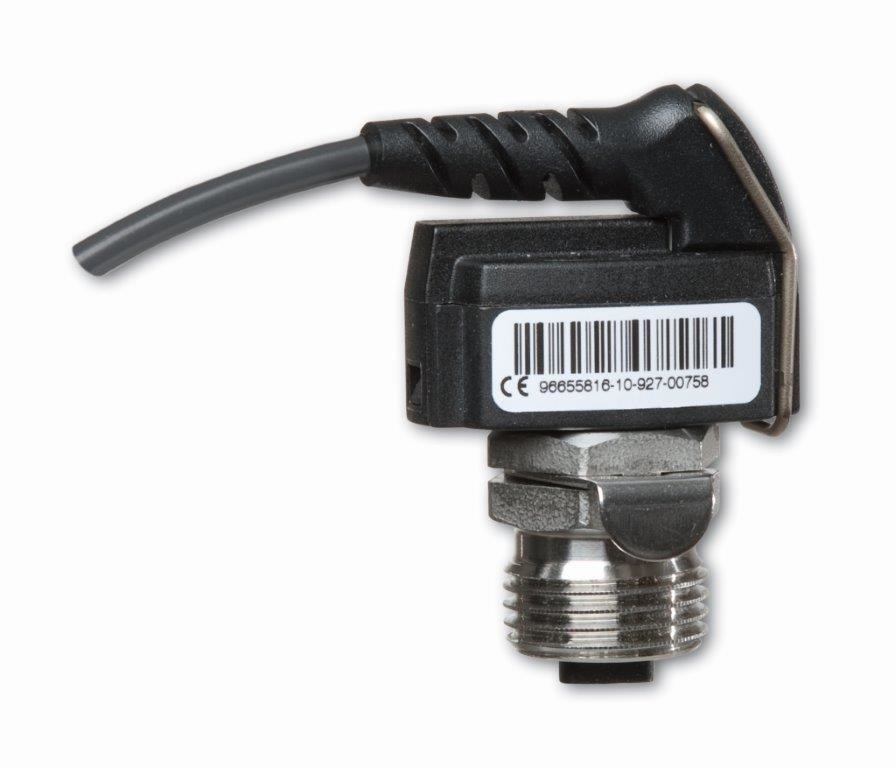

Grundfos RPS Analog Pressure Sensor

The RPS is a 2-in-1 relative pressure and temperature sensor using a 5V stable power supply which generally outputs a ratio-metric signal from 0.5 - 3.5V from 0 to pressure max.

Fittings for connection come in 1/2" stainless steel thread (BSP or NPT) or 3/8" composite adapter.

All RPS sensors also measure temperature from 0-100 degrees Celsius (32-212 degrees Fahrenheit).

Features and Attributes:

• Enclosure class: IP44
• RPS 0-10 bar | 145 psig
• Burst pressure > 30 bar (435 psig)
• 1/2" (1.27cm) NPT
• Pressure and temperature sensor in one package (two-in-one sensor)
• Compatible with wet, aggressive media
• Accurate, linearised and temperature-compensated pressure sensor
• Fast temperature response (direct media contact)

This Product Includes:

• (1) Grundfos RPS 0-10 bar (0 - 145.0 psi) sensor
• (1) 1/2" NPT stainless steel (316L) nipple
• (1) Clip
• (1) Cable (1-meter long)
