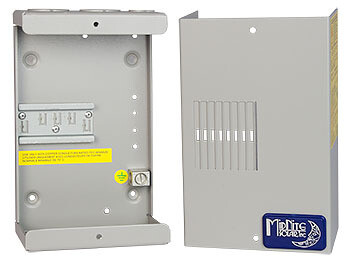

Big Baby Battery Enclosure

Insulated Box for 4 Batteries NEMA 4 enclosure, suitable for either indoor or outdoor use. Protects against falling dirt, rain, sleet, snow, windblown dust, and splashing water.

The original Baby box has been a huge success in filling an industry need. Midnite Solar, Inc. has created an enclosure called the Big Baby to over come the size limitations of its smaller sibling, allowing for an ETL-listed 4 position DIN rail box. This box is approximately twice as wide as the Baby Box giving you more wiring room. It also includes a ground box lug and mounting provisions for our short insulated bus bar as well as a ground bus bar.

Features and Attributes:

• Lockable clasps & piano-hinged lid
• Southco fastener
• 14-gauge steel
• Powder coat grey
• 3.81cm (1.5") rigid exposed insulation
• Environmental Rating - Type 1 (Indoor)
• Big Baby's DIN rail accepts up to 4 breakers (not included)
• Quad accepts up to 4 panel mount breakers (not included)
• Breakers: 1-63A
• Max. Wire - breakers 6 AWG
• Max. AC Voltage - 277VAC
• Max. DC Voltage - 300VDC
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
