14 Plate, Brazed Plate Heat Exchanger
Product Details
Brand: Triangle Tube

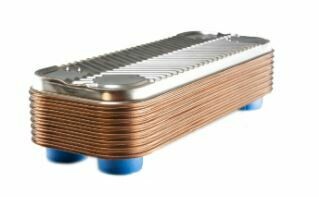

Single Wall Brazed Plate Heat Exchanger , TTP1-14E
| Model | Threaded Connection (inch) NPT |
Sweated Connection (inch) |
A | B | C | D | E | Empty Weight (lbs) |
Plates |
| TTP1-14E | 3/4 | 7/8 | 3.3 | 8.0 | 6.0 | 1.6 | 1.6 | 3.1 | 14 |
The plates are made of acid resistant stainless steel with 99.9% pure copper brazing which ensures a very high resistance to corrosion.
The ACV-Triangle Tube heat exchanger creates a turbulent flow even at low velocities, resulting in a self cleaning, self descaling design that resists scaling.
Typical applications include one or two panel solar thermal systems, domestic hot water, radiant floor heating, snow melt, etc.
Specifications:
Materials: Plates and Connections: AISI 316L Stainless Steel, Braze: 99.9% Copper
Operating Conditions: Max Operating Temperature: 350°F
Max. Operating Pressure: 450psig, 145 psig (“E” Models)
Approvals:
