1/2" dahl mini-ball™ Hose Valve
Product Details
Brand: dahl

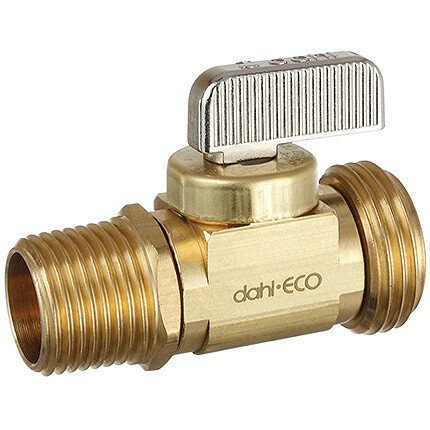

Dahl Mini-Ball 1/2" Iron Solder or MIP x 1/2" Male Hose Straight Valve
dahl hose valves are suitable for both plumbing and heating applications. Every valve is tested before leaving the factory.
Features and Attributes:
- Lead-free rough brass with nickel-plated handle
- Straight pattern
- Inlet pipe type: iron
- Outlet pipe type: hose
- Working pressure: 250 psi, 250°F depending on pipe material
Instructions for use:
- Turn off water supply. Install product. Turn on water supply, check for leaks. Abide by local plumbing codes. Do not expose to corrosive agents.
- NPT THREAD: Clean pipe threads and cover them with pipe dope or PTFE tape. Tighten firmly while gripping hex on end of valve. Do not over-tighten.
- FEMALE SOLDER: Do not dismantle valve – solder in open position. Clean pipe and valve socket with emery cloth, & apply flux to both. Pipe must be square and bottomed in socket. Do not re-position valve after soldering. Clean with water and dry. Let cool before operating.
- HOSE: Tighten firmly. Do not over-tighten.
CERTIFICATIONS
